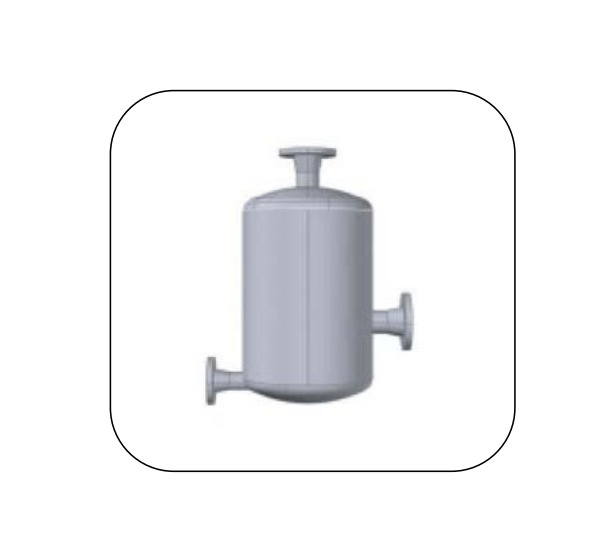

Condensate Damping pot

Condensate Damping Pot in Steam and Condensate Systems

In steam and condensate systems, condensate often needs to be lifted to higher elevation pipes. For example, heat exchangers may be installed at a lower level than the main condensate return line. This situation can lead to water hammer, which can cause damage to various components of the steam piping system and create unsafe conditions for personnel. Installing a damping pot from Fluid Line at the lowest point of the piping system helps mitigate these issues by reducing the impact of water hammer and allowing condensate to be discharged quietly and efficiently.

Key Functions of a Condensate Damping Pot:

1. Reduces Water Hammer:
   The damping pot absorbs the shock caused by sudden pressure changes (water hammer) in the system, protecting the piping and equipment from damage.
2. Quiet Operation:
   It allows condensate to be discharged smoothly and quietly, minimizing noise and vibration in the system.
3. Prevents System Damage:
   By mitigating the force of water hammer, the damping pot helps extend the lifespan of pipes, valves, and other components.
4. Improves Safety:
   Reducing water hammer and associated vibrations creates a safer working environment for personnel.
5. Enhances System Efficiency:
   The damping pot ensures that condensate is effectively removed from the system, maintaining optimal steam system performance.

Installation:

• The damping pot is typically installed at the lowest point of the condensate return line or where condensate needs to be lifted to a higher elevation.
• It acts as a buffer, collecting condensate and releasing it gradually to prevent sudden pressure surges.

Benefits:

• Protects Equipment: Prevents damage to pipes, valves, and other components caused by water hammer.
• Reduces Noise: Ensures quiet and smooth condensate discharge.
• Increases Safety: Minimizes risks associated with water hammer, such as pipe bursts or equipment failure.
• Maintains System Efficiency: Ensures proper condensate removal, improving overall steam system performance.

In summary, a Condensate Damping Pot is an essential component in steam and condensate systems, particularly in scenarios where condensate needs to be lifted. It effectively reduces water hammer, protects the system, and ensures safe and efficient operation.

Benefits of condensate damping pot
